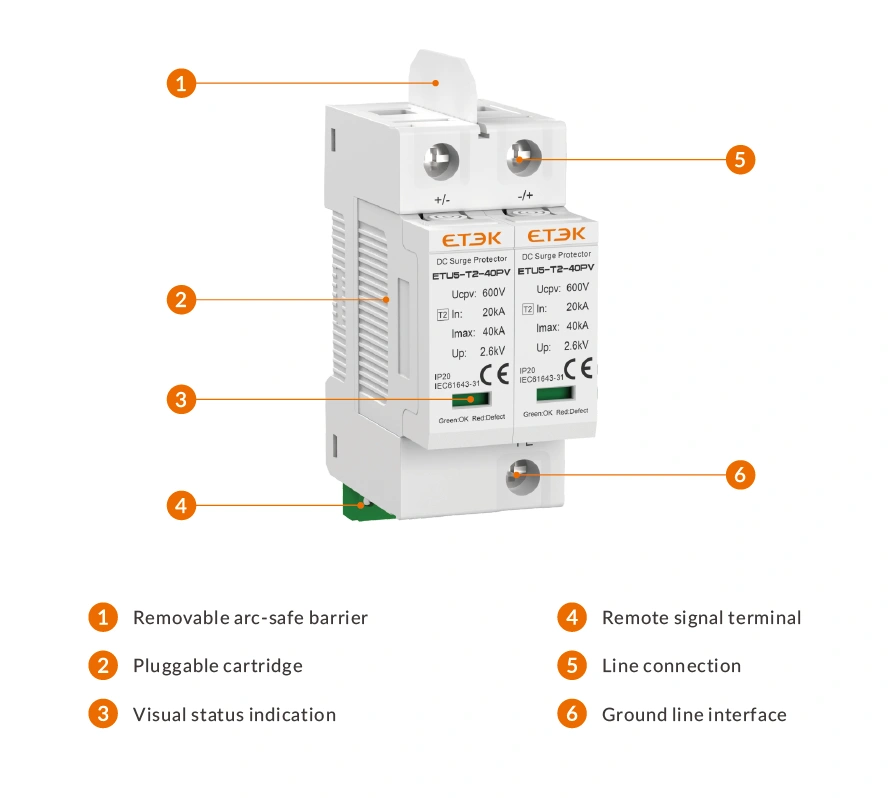

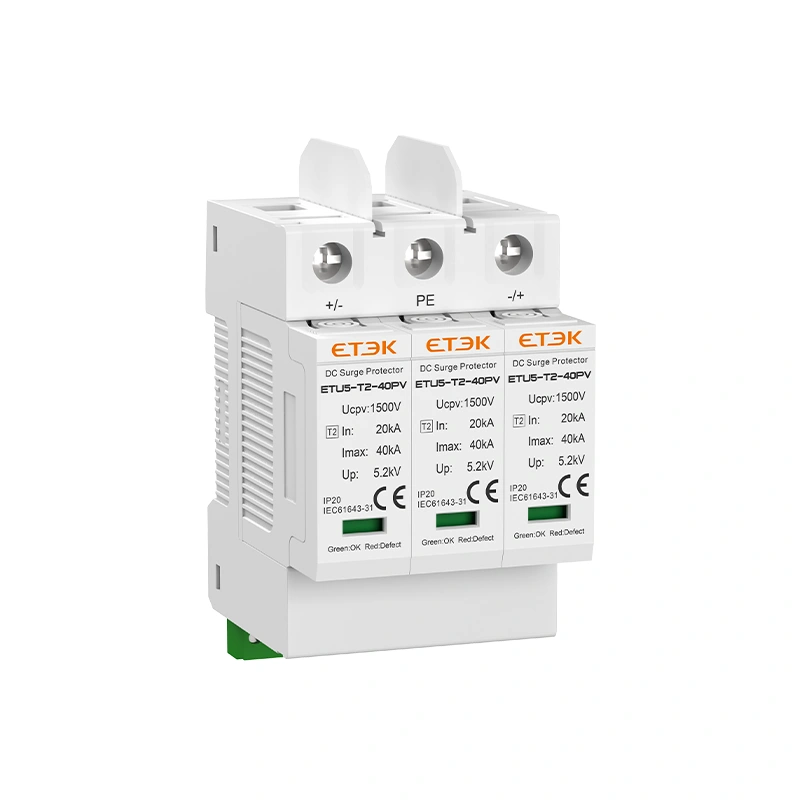

ETU5-T2-40PV Series DC Surge Protective Device is designed for enhanced surge protection on the DC side of solar photovoltaic systems. It is suitable for PV string boxes and inverter DC inputs, helping to improve system reliability by limiting the effects of lightning-induced surges and transient overvoltages.
With higher discharge capability for demanding PV applications, the series is well suited for solar installations requiring robust and dependable DC-side protection.
| ① | ETEK | ⑥ | Solar PV system |
| ② | T series | ⑦ | No. of Module: 2:2Module; 3:3Module |
| ③ | SPD series No.5 | ⑧ | Uc: 600:DC600V; 800:DC800V; 1000:DC1000V; 1500:DC1500V |
| ④ | Class II / Type 2 | ⑨ | With Remote Signaling |
| ⑤ | Imax: 40kA |
| No. of poles | 2P(2Mods), 3P(3Mods) | ||||
| Location of Use | String box, Inverter | ||||

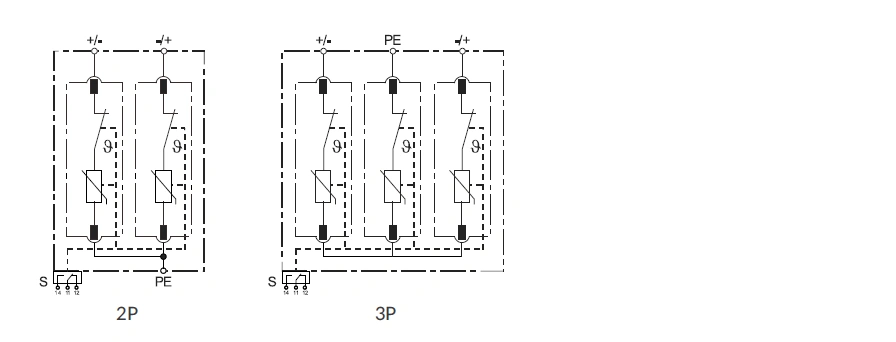

| Mode of protection | (DC+)-PE,(DC-)-PE,(DC+)-(DC-) | ||||
| Protective elements | High Energy MOV | ||||
| Maximum continuous operating DC voltage | 600V | 800V | 1000V | 1500V | |
| Norminal discharge current (8/20us) | Ucpv | 20kA | |||
| Total discharge current (8/20μs) | In | 40kA | |||
| Maximum discharge current (8/20μs) | ITotal | 40kA | |||
| Voltage protection level (2P) | Imax | 2.6kV | 3.5kV | 4.0kV | - |
| Voltage protection level (3P) | Up | - | - | 4.0kV | 5.2kV |
| Response time | Up | ≤25ns | |||
| Short-circuit current rating | tA | 2000A | |||
| Operating temperature range | Iscpv | -40℃ to +80℃ | |||

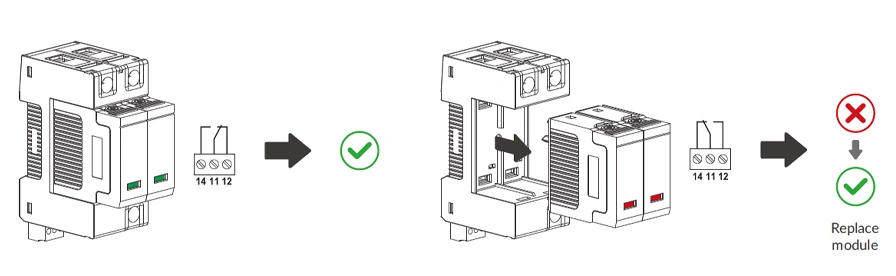

| Operating state/fault indication | Tu | Green/Red | |||
| Cross-section area (Min.)/(Max.) | 4mm²/35mm² | ||||

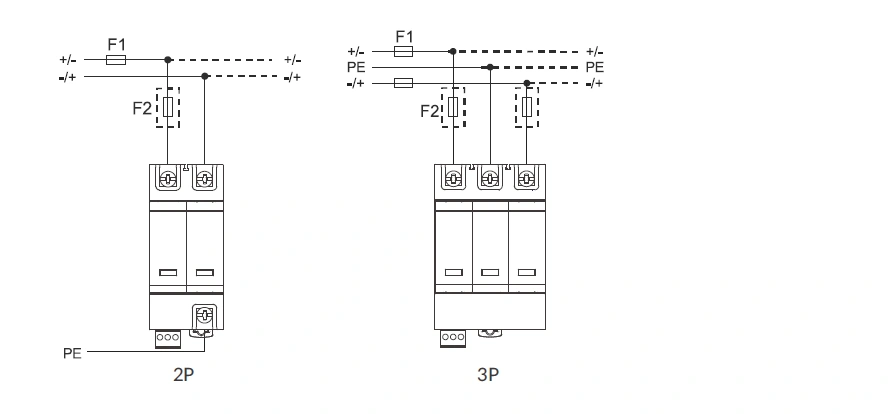

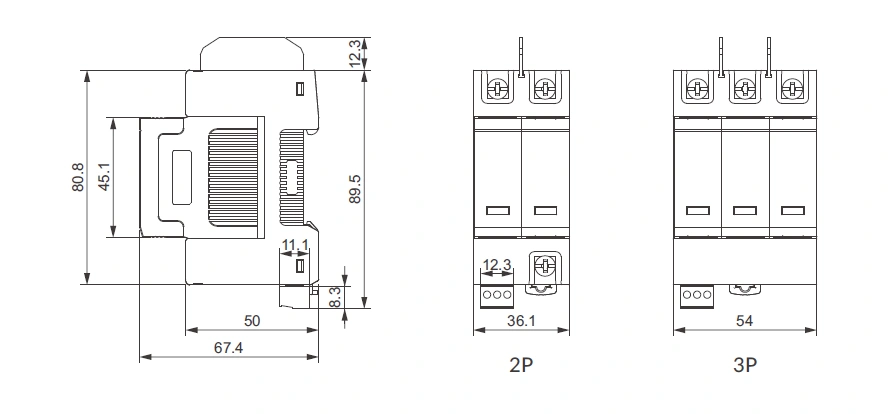

| Mounting | 35mm DIN Rail, EN 60715 | ||||
| Enclosure material | Thermal Plastic UL94-V0 | ||||
| Degree of protection | IP20 (built-in) | ||||

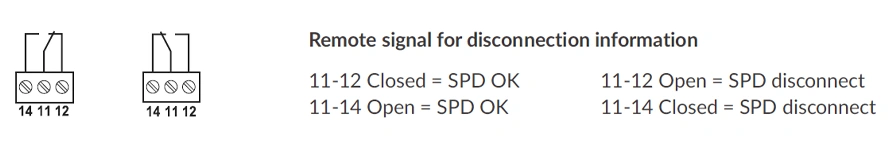

| Remote contacts (RC) | Optional | ||||
| RC switching capacity | AC: 250V/0.5A; DC: 250V/0.1A; 125V/0.2A; 75V/0.5A | ||||
| RC conductor cross section (max.) | 16 AWG (Solid) / 1.5mm² (Solid) | ||||
