Контактор широкого диапазона напряжений EKC2W с универсальной катушкой переменного/постоянного тока
Запросить
Контакторы переменного тока используются для подключения/отключения линии и частого управления двигателями и другим оборудованием. Он управляет большим током малым током и играет определенную роль в защите от перегрузки при работе с тепловым реле.
| Приложение | дистанционное включение и выключение цепей |
| защитить цепь от перегрузки при сборке с тепловым реле перегрузки | |
| частый запуск и управление контактором переменного тока | |
| Электрическая ценность | Переменный ток 50/60 Гц, 690 В, до 95 А |
| Категория использования | АС-3, АС-4 |
| Высота | ≤2000м |
| Температура окружающей среды | -5℃~+40℃ |
| Категория монтажа | Ⅲ |
| Условия монтажа | Наклон между плоскостью крепления и вертикальной плоскостью не должен превышать ±5°. |
| Стандарт | МЭК/ЕН 60947-4-1. МЭК/ЕН 60947-5-1. |
| Работа катушки переменного тока | ||||||||||||||||
| Вольты (VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 | |
| Код | 50 Гц | В5 | С5 | Д5 | Е5 | Ф5 | Г5 | М5 | П5 | У5 | Q5 | Н5 | Р5 | - | С5 | Y5 |
| 60 Гц | В6 | - | Д6 | Е6 | Ф6 | Г6 | М6 | 0 | У6 | Q6 | 0 | Р6 | Т6 | - | - | |
| 50/60Гц | В7 | - | Д7 | Е7 | Ф7 | - | М7 | - | Q7 | Р7 | - | - | - | |||
| Работа катушки постоянного тока | ||||||||||||||||
| Вольты (VDC) | 12 | 24 | 36 | 48 | 110 | 220 | ||||||||||
| Код | ЖД | БД | компакт-диск | ЭД | ФД | МД | ||||||||||
| ЭК | С | 1 | 09 | 11 | З |
Код компании | Контактор | Последовательность проектирования № | Основные технические характеристики, выраженные в номинальном рабочем токе (380 В/400 В, AC3) | Количество контактов 10: 3НО главных контакта+1НО вспомогательный контакт (9А,12А,18А,25А,32А) 01: 3НО главных контакта+1НЗ вспомогательный контакт (9А,12А,18А,25А,32А) 11: 3 основных контакта N/O + 1 вспомогательный контакт N/O и 1 N/C (9A, 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A) 04: 4НО главных контакта (9А, 12А, 25А, 40А, 50А, 65А, 80А, 95А) 08: 2НО и 2НЗ главных контакта (9А, 12А, 25А, 40А, 50А, 65А, 80А, 95А) | Z: Работа на постоянном токе Пусто: Работа на переменном токе |
| Стандарт | МЭК/EN60947-4-1 МЭК/EN60947-5-1 | ||||||||||
| Модель № | ЭКЦ1-09 | ЭКЦ1-12 | ЭКЦ1-18 | ЭКЦ1-25 | ЭКЦ1-32 | ЭКЦ1-40 | ЭКЦ1-50 | ЭКЦ1-65 | ЭКЦ1-80 | ЭКЦ1-95 | |
| Номинальный условный ток нагрева | Ит(А) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 125 |
| Номинальное напряжение Ui(В) | Ui(В) | 690 | |||||||||
| Номинальный рабочий ток Uэ=380/415В | АС-3 Иэ(А) | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| АС-4 Иэ(А) | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Управляемая мощность 3 фазы Двигатель переменного тока AC-3 | 220/240В кВт | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/415В кВт | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 660/690В кВт | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| АС-3 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 600 | 600 | 600 | 600 | |

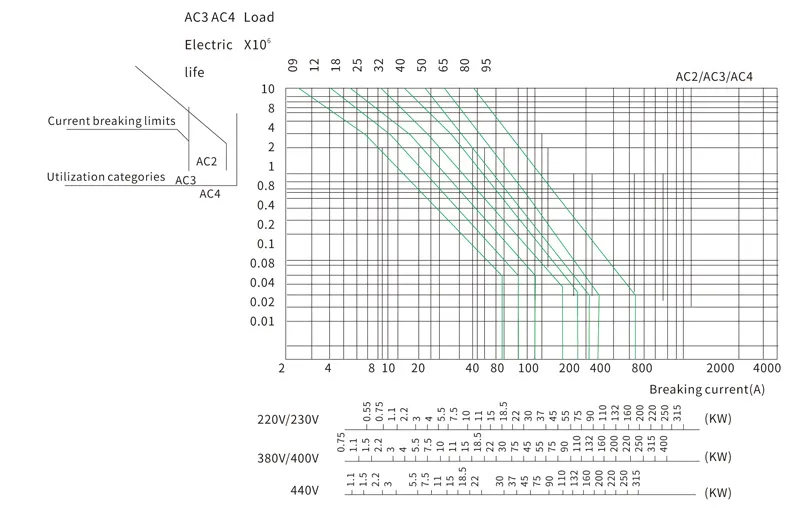

| Электрический ресурс (x103 операций) | АС-4 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 100 | 100 |
| Механический ресурс (x106 операций) | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 6 | 6 | |
| Подходящий предохранитель | Размер | РТ16-00 | |||||||||
| А | 20 | 20 | 32 | 40 | 50 | 63 | 80 | 80 | 100 | 125 | |
| Основная цепь | 3P или 4P | ||||||||||
| Вспомогательная цепь Кат.:AC-15, Ue=415В Ie=0,95А Ith=10А | 1НО / 1НЗ / 1НО + 1НЗ | ||||||||||
| Модель | Сечение кабеля (Cu) | размер винта | Момент затяжки (Нм) | |||
| Количество штук: | Гибкий кабель с холоднопрессованной муфтой (мм2) | Гибкий кабель без холоднопрессованной муфты (мм2) | Негибкий кабель (мм2) | |||
| ЭКЦ1-09 | 1~2 | 2.5 | 4 | 4 | М3.5 | 0,8 |
| ЭКЦ1-12 | 1~2 | 2.5 | 4 | 4 | М3.5 | 0,8 |
| ЭКЦ1-18 | 1~2 | 4 | 6 | 6 | М3.5 | 0,8 |
| ЭКЦ1-25 | 1 | 4 | 10 | 6 | М4 | 1.2 |
| 2 | 4 | 6 | 6 | М4 | 1.2 | |
| ЭКЦ1-32 | 1 | 4 | 10 | 6 | М4 | 1.2 |
| 2 | 4 | 6 | 6 | М4 | 1.2 | |
| ЭКЦ1-40 | 1 | 10 | 16 | 10 | М4 | 3.5 |
| 2 | 10 | 10 | 10 | М8 | 3.5 | |
| ЭКЦ1-50 | 1 | 16 | 25 | 25 | М8 | 3.5 |
| 2 | 16 | 16 | - | М8 | 3.5 | |
| ЭКЦ1-65 | 1 | 16 | 25 | 25 | М8 | 3.5 |
| 2 | 16 | 16 | - | М8 | 3.5 | |
| ЭКЦ1-80 | 1 | 50 | 50 | 50 | М8 | 3.5 |
| 2 | 25 | 35 | - | М10 | 4 | |
| ЭКЦ1-95 | 1 | 50 | 50 | 50 | М10 | 4 |
| 2 | 25 | 35 | - | М10 | 4 | |
| ЕКС1-09~32 | ||||||||||
 | ||||||||||
| ЭКЦ1-40~95 | ||||||||||
 | ||||||||||
| EKC1-09Z~32Z | ||||||||||
 | ||||||||||
| ЕКЦ1-40Z~95Z | ||||||||||
 |
| Макс. | Б макс | С макс. | D макс. | Е макс | а | б | Ф | Л | П | С | |
| ЕКЦ1-09(З)~12(З) | 47 | 76 | 82(116) | 125,5(160,5) | 140,5(174,5) | 34/35 | 50/60 | 4.5 | 60(95) | 10.5 | 8.6 |
| ЕКЦ1-18(З) | 47 | 76 | 87(122) | 120,5(154,5) | 145,5(180,5) | 34/35 | 50/60 | 4.5 | 61(96) | 11.3 | 10.4 |
| ЕКЦ1-25(З) | 57 | 86 | 95(131) | 133,5(169,5) | 153,5(189,5) | 40 | 48 | 4.5 | 70(107) | 13.2 | 11.7 |
| ЕКЦ1-32(З) | 57 | 86 | 100(138) | 138,5(176,5) | 158,5(196,5) | 40 | 48 | 4.5 | 71.6(120) | 14.5 | 13 |
| EKC1-4011(Z)~6511(Z) | 77 | 129 | 116(173) | 154,5(211,5) | 174,5(231,5) | 40 | 100/110 | 6.5 | 78(135) | 20 | 8.6 |
| ЕКЦ1-4004/4008(З) ~6504/6508(З) | 84 | 129 | 116(173) | 154,5(211,5) | 174,5(231,5) | 40 | 100/110 | 6.5 | 78(135) | 20 | 8.6 |
| EKC1-8011(Z)~9511(Z) | 87 | 129 | 127(183) | 165,5(226,5) | 185,5(246,5) | 40 | 100/110 | 6.5 | 83(140) | 23.5 | 12 |
| EKC1-8004/8008(З) ~9504/9508(З) | 96 | 129 | 127(183) | 160,5(221,5) | 180,5(241,5) | 40 | 100/110 | 6.5 | 83(140) | 23.5 | 12 |
Примечание:
1. L: в главной цепи — расстояние между клеммами и пластиной;
2. P: в главной цепи — расстояние между двумя фазами;
3. S: в главной цепи ширина контактной пластины
| Reference No. | Specification |
| AC Coil | |
| EKC1-0910-24 | Contactor 4KW AC3 9A 3P+1NO Coil 24VAC |
| EKC1-0910-42 | Contactor 4KW AC3 9A 3P+1NO Coil 42VAC |
| EKC1-0910-48 | Contactor 4KW AC3 9A 3P+1NO Coil 48VAC |
| EKC1-0910-110 | Contactor 4KW AC3 9A 3P+1NO Coil 110VAC |
| EKC1-0910-120 | Contactor 4KW AC3 9A 3P+1NO Coil 120VAC |
| EKC1-0910-220 | Contactor 4KW AC3 9A 3P+1NO Coil 220VAC |
| EKC1-0910-230 | Contactor 4KW AC3 9A 3P+1NO Coil 230VAC |
| EKC1-0910-240 | Contactor 4KW AC3 9A 3P+1NO Coil 240VAC |
| EKC1-0910-380 | Contactor 4KW AC3 9A 3P+1NO Coil 380VAC |
| EKC1-0910-415 | Contactor 4KW AC3 9A 3P+1NO Coil 415VAC |
| EKC1-0901-24 | Contactor 4KW AC3 9A 3P+1NC Coil 24VAC |
| EKC1-0901-42 | Contactor 4KW AC3 9A 3P+1NC Coil 42VAC |
| EKC1-0901-48 | Contactor 4KW AC3 9A 3P+1NC Coil 48VAC |
| EKC1-0901-110 | Contactor 4KW AC3 9A 3P+1NC Coil 110VAC |
| EKC1-0901-120 | Contactor 4KW AC3 9A 3P+1NC Coil 120VAC |
| EKC1-0901-220 | Contactor 4KW AC3 9A 3P+1NC Coil 220VAC |
| EKC1-0901-230 | Contactor 4KW AC3 9A 3P+1NC Coil 230VAC |
| EKC1-0901-240 | Contactor 4KW AC3 9A 3P+1NC Coil 240VAC |
| EKC1-0901-380 | Contactor 4KW AC3 9A 3P+1NC Coil 380VAC |
| EKC1-0901-415 | Contactor 4KW AC3 9A 3P+1NC Coil 415VAC |
| EKC1-0911-24 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 24VAC |
| EKC1-0911-42 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 42VAC |
| EKC1-0911-48 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 48VAC |
| EKC1-0911-110 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 110VAC |
| EKC1-0911-120 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 120VAC |
| EKC1-0911-220 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 220VAC |
| EKC1-0911-230 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 230VAC |
| EKC1-0911-240 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 240VAC |
| EKC1-0911-380 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 380VAC |
| EKC1-0911-415 | Contactor 4KW AC3 9A 3P+1NO+1NC Coil 415VAC |
| EKC1-1210-24 | Contactor 5.5KW AC3 12A 3P+1NO Coil 24VAC |
| EKC1-1210-42 | Contactor 5.5KW AC3 12A 3P+1NO Coil 42VAC |
| EKC1-1210-48 | Contactor 5.5KW AC3 12A 3P+1NO Coil 48VAC |
| EKC1-1210-110 | Contactor 5.5KW AC3 12A 3P+1NO Coil 110VAC |
| EKC1-1210-120 | Contactor 5.5KW AC3 12A 3P+1NO Coil 120VAC |
| EKC1-1210-220 | Contactor 5.5KW AC3 12A 3P+1NO Coil 220VAC |
| EKC1-1210-230 | Contactor 5.5KW AC3 12A 3P+1NO Coil 230VAC |
| EKC1-1210-240 | Contactor 5.5KW AC3 12A 3P+1NO Coil 240VAC |
| EKC1-1210-380 | Contactor 5.5KW AC3 12A 3P+1NO Coil 380VAC |
| EKC1-1210-415 | Contactor 5.5KW AC3 12A 3P+1NO Coil 415VAC |
| EKC1-1201-24 | Contactor 5.5KW AC3 12A 3P+1NC Coil 24VAC |
| EKC1-1201-42 | Contactor 5.5KW AC3 12A 3P+1NC Coil 42VAC |
| EKC1-1201-48 | Contactor 5.5KW AC3 12A 3P+1NC Coil 48VAC |
| EKC1-1201-110 | Contactor 5.5KW AC3 12A 3P+1NC Coil 110VAC |
| EKC1-1201-120 | Contactor 5.5KW AC3 12A 3P+1NC Coil 120VAC |
| EKC1-1201-220 | Contactor 5.5KW AC3 12A 3P+1NC Coil 220VAC |
| EKC1-1201-230 | Contactor 5.5KW AC3 12A 3P+1NC Coil 230VAC |
| EKC1-1201-240 | Contactor 5.5KW AC3 12A 3P+1NC Coil 240VAC |
| EKC1-1201-380 | Contactor 5.5KW AC3 12A 3P+1NC Coil 380VAC |
| EKC1-1201-415 | Contactor 5.5KW AC3 12A 3P+1NC Coil 415VAC |
| EKC1-1211-24 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 24VAC |
| EKC1-1211-42 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 42VAC |
| EKC1-1211-48 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 48VAC |
| EKC1-1211-110 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 110VAC |
| EKC1-1211-120 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 120VAC |
| EKC1-1211-220 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 220VAC |
| EKC1-1211-230 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 230VAC |
| EKC1-1211-240 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 240VAC |
| EKC1-1211-380 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 380VAC |
| EKC1-1211-415 | Contactor 5.5KW AC3 12A 3P+1NO+1NC Coil 415VAC |
| EKC1-1810-24 | Contactor 7.5KW AC3 18A 3P+1NO Coil 24VAC |
| EKC1-1810-42 | Contactor 7.5KW AC3 18A 3P+1NO Coil 42VAC |
| EKC1-1810-48 | Contactor 7.5KW AC3 18A 3P+1NO Coil 48VAC |
| EKC1-1810-110 | Contactor 7.5KW AC3 18A 3P+1NO Coil 110VAC |
| EKC1-1810-120 | Contactor 7.5KW AC3 18A 3P+1NO Coil 120VAC |
| EKC1-1810-220 | Contactor 7.5KW AC3 18A 3P+1NO Coil 220VAC |
| EKC1-1810-230 | Contactor 7.5KW AC3 18A 3P+1NO Coil 230VAC |
| EKC1-1810-240 | Contactor 7.5KW AC3 18A 3P+1NO Coil 240VAC |
| EKC1-1810-380 | Contactor 7.5KW AC3 18A 3P+1NO Coil 380VAC |
| EKC1-1810-415 | Contactor 7.5KW AC3 18A 3P+1NO Coil 415VAC |
| EKC1-1801-24 | Contactor 7.5KW AC3 18A 3P+1NC Coil 24VAC |
| EKC1-1801-42 | Contactor 7.5KW AC3 18A 3P+1NC Coil 42VAC |
| EKC1-1801-48 | Contactor 7.5KW AC3 18A 3P+1NC Coil 48VAC |
| EKC1-1801-110 | Contactor 7.5KW AC3 18A 3P+1NC Coil 110VAC |
| EKC1-1801-120 | Contactor 7.5KW AC3 18A 3P+1NC Coil 120VAC |
| EKC1-1801-220 | Contactor 7.5KW AC3 18A 3P+1NC Coil 220VAC |
| EKC1-1801-230 | Contactor 7.5KW AC3 18A 3P+1NC Coil 230VAC |
| EKC1-1801-240 | Contactor 7.5KW AC3 18A 3P+1NC Coil 240VAC |
| EKC1-1801-380 | Contactor 7.5KW AC3 18A 3P+1NC Coil 380VAC |
| EKC1-1801-415 | Contactor 7.5KW AC3 18A 3P+1NC Coil 415VAC |
| EKC1-1811-24 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 24VAC |
| EKC1-1811-42 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 42VAC |
| EKC1-1811-48 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 48VAC |
| EKC1-1811-110 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 110VAC |
| EKC1-1811-120 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 120VAC |
| EKC1-1811-220 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 220VAC |
| EKC1-1811-230 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 230VAC |
| EKC1-1811-240 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 240VAC |
| EKC1-1811-380 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 380VAC |
| EKC1-1811-415 | Contactor 7.5KW AC3 18A 3P+1NO+1NC Coil 415VAC |
| EKC1-2510-24 | Contactor 11KW AC3 25A 3P+1NO Coil 24VAC |
| EKC1-2510-42 | Contactor 11KW AC3 25A 3P+1NO Coil 42VAC |
| EKC1-2510-48 | Contactor 11KW AC3 25A 3P+1NO Coil 48VAC |
| EKC1-2510-110 | Contactor 11KW AC3 25A 3P+1NO Coil 110VAC |
| EKC1-2510-120 | Contactor 11KW AC3 25A 3P+1NO Coil 120VAC |
| EKC1-2510-220 | Contactor 11KW AC3 25A 3P+1NO Coil 220VAC |
| EKC1-2510-230 | Contactor 11KW AC3 25A 3P+1NO Coil 230VAC |
| EKC1-2510-240 | Contactor 11KW AC3 25A 3P+1NO Coil 240VAC |
| EKC1-2510-380 | Contactor 11KW AC3 25A 3P+1NO Coil 380VAC |
| EKC1-2510-415 | Contactor 11KW AC3 25A 3P+1NO Coil 415VAC |
| EKC1-2501-24 | Contactor 11KW AC3 25A 3P+1NC Coil 24VAC |
| EKC1-2501-42 | Contactor 11KW AC3 25A 3P+1NC Coil 42VAC |
| EKC1-2501-48 | Contactor 11KW AC3 25A 3P+1NC Coil 48VAC |
| EKC1-2501-110 | Contactor 11KW AC3 25A 3P+1NC Coil 110VAC |
| EKC1-2501-120 | Contactor 11KW AC3 25A 3P+1NC Coil 120VAC |
| EKC1-2501-220 | Contactor 11KW AC3 25A 3P+1NC Coil 220VAC |
| EKC1-2501-230 | Contactor 11KW AC3 25A 3P+1NC Coil 230VAC |
| EKC1-2501-240 | Contactor 11KW AC3 25A 3P+1NC Coil 240VAC |
| EKC1-2501-380 | Contactor 11KW AC3 25A 3P+1NC Coil 380VAC |
| EKC1-2501-415 | Contactor 11KW AC3 25A 3P+1NC Coil 415VAC |
| EKC1-2511-24 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 24VAC |
| EKC1-2511-42 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 42VAC |
| EKC1-2511-48 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 48VAC |
| EKC1-2511-110 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 110VAC |
| EKC1-2511-120 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 120VAC |
| EKC1-2511-220 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 220VAC |
| EKC1-2511-230 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 230VAC |
| EKC1-2511-240 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 240VAC |
| EKC1-2511-380 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 380VAC |
| EKC1-2511-415 | Contactor 11KW AC3 25A 3P+1NO+1NC Coil 415VAC |
| EKC1-3210-24 | Contactor 15KW AC3 32A 3P+1NO Coil 24VAC |
| EKC1-3210-42 | Contactor 15KW AC3 32A 3P+1NO Coil 42VAC |
| EKC1-3210-48 | Contactor 15KW AC3 32A 3P+1NO Coil 48VAC |
| EKC1-3210-110 | Contactor 15KW AC3 32A 3P+1NO Coil 110VAC |
| EKC1-3210-120 | Contactor 15KW AC3 32A 3P+1NO Coil 120VAC |
| EKC1-3210-220 | Contactor 15KW AC3 32A 3P+1NO Coil 220VAC |
| EKC1-3210-230 | Contactor 15KW AC3 32A 3P+1NO Coil 230VAC |
| EKC1-3210-240 | Contactor 15KW AC3 32A 3P+1NO Coil 240VAC |
| EKC1-3210-380 | Contactor 15KW AC3 32A 3P+1NO Coil 380VAC |
| EKC1-3210-415 | Contactor 15KW AC3 32A 3P+1NO Coil 415VAC |
| EKC1-3201-24 | Contactor 15KW AC3 32A 3P+1NC Coil 24VAC |
| EKC1-3201-42 | Contactor 15KW AC3 32A 3P+1NC Coil 42VAC |
| EKC1-3201-48 | Contactor 15KW AC3 32A 3P+1NC Coil 48VAC |
| EKC1-3201-110 | Contactor 15KW AC3 32A 3P+1NC Coil 110VAC |
| EKC1-3201-120 | Contactor 15KW AC3 32A 3P+1NC Coil 120VAC |
| EKC1-3201-220 | Contactor 15KW AC3 32A 3P+1NC Coil 220VAC |
| EKC1-3201-230 | Contactor 15KW AC3 32A 3P+1NC Coil 230VAC |
| EKC1-3201-240 | Contactor 15KW AC3 32A 3P+1NC Coil 240VAC |
| EKC1-3201-380 | Contactor 15KW AC3 32A 3P+1NC Coil 380VAC |
| EKC1-3201-415 | Contactor 15KW AC3 32A 3P+1NC Coil 415VAC |
| EKC1-3211-24 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 24VAC |
| EKC1-3211-42 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 42VAC |
| EKC1-3211-48 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 48VAC |
| EKC1-3211-110 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 110VAC |
| EKC1-3211-120 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 120VAC |
| EKC1-3211-220 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 220VAC |
| EKC1-3211-230 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 230VAC |
| EKC1-3211-240 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 240VAC |
| EKC1-3211-380 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 380VAC |
| EKC1-3211-415 | Contactor 15KW AC3 32A 3P+1NO+1NC Coil 415VAC |
| EKC1-4011-24 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 24VAC |
| EKC1-4011-42 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 42VAC |
| EKC1-4011-48 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 48VAC |
| EKC1-4011-110 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 110VAC |
| EKC1-4011-120 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 120VAC |
| EKC1-4011-220 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 220VAC |
| EKC1-4011-230 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 230VAC |
| EKC1-4011-240 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 240VAC |
| EKC1-4011-380 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 380VAC |
| EKC1-4011-415 | Contactor 18.5KW AC3 40A 3P+1NO+1NC Coil 415VAC |
| EKC1-5011-24 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VAC |
| EKC1-5011-42 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 42VAC |
| EKC1-5011-48 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VAC |
| EKC1-5011-110 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VAC |
| EKC1-5011-120 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VAC |
| EKC1-5011-220 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VAC |
| EKC1-5011-230 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 230VAC |
| EKC1-5011-240 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 240VAC |
| EKC1-5011-380 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 380VAC |
| EKC1-5011-415 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 415VAC |
| EKC1-6511-24 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VAC |
| EKC1-6511-42 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 42VAC |
| EKC1-6511-48 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VAC |
| EKC1-6511-110 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VAC |
| EKC1-6511-120 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VAC |
| EKC1-6511-220 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VAC |
| EKC1-6511-230 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 230VAC |
| EKC1-6511-240 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 240VAC |
| EKC1-6511-380 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 380VAC |
| EKC1-6511-415 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 415VAC |
| EKC1-8011-24 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VAC |
| EKC1-8011-42 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 42VAC |
| EKC1-8011-48 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VAC |
| EKC1-8011-110 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VAC |
| EKC1-8011-120 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VAC |
| EKC1-8011-220 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VAC |
| EKC1-8011-230 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 230VAC |
| EKC1-8011-240 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 240VAC |
| EKC1-8011-380 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 380VAC |
| EKC1-8011-415 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 415VAC |
| EKC1-9511-24 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VAC |
| EKC1-9511-42 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 42VAC |
| EKC1-9511-48 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VAC |
| EKC1-9511-110 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VAC |
| EKC1-9511-120 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VAC |
| EKC1-9511-220 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VAC |
| EKC1-9511-230 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 230VAC |
| EKC1-9511-240 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 240VAC |
| EKC1-9511-380 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 380VAC |
| EKC1-9511-415 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 415VAC |
| EKC1-0904-24 | Contactor 4KW AC3 9A 4P 4NO Coil 24VAC |
| EKC1-0904-42 | Contactor 4KW AC3 9A 4P 4NO Coil 42VAC |
| EKC1-0904-48 | Contactor 4KW AC3 9A 4P 4NO Coil 48VAC |
| EKC1-0904-110 | Contactor 4KW AC3 9A 4P 4NO Coil 110VAC |
| EKC1-0904-120 | Contactor 4KW AC3 9A 4P 4NO Coil 120VAC |
| EKC1-0904-220 | Contactor 4KW AC3 9A 4P 4NO Coil 220VAC |
| EKC1-0904-230 | Contactor 4KW AC3 9A 4P 4NO Coil 230VAC |
| EKC1-0904-240 | Contactor 4KW AC3 9A 4P 4NO Coil 240VAC |
| EKC1-0904-380 | Contactor 4KW AC3 9A 4P 4NO Coil 380VAC |
| EKC1-0904-415 | Contactor 4KW AC3 9A 4P 4NO Coil 415VAC |
| EKC1-0908-24 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 24VAC |
| EKC1-0908-42 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 42VAC |
| EKC1-0908-48 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 48VAC |
| EKC1-0908-110 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 110VAC |
| EKC1-0908-120 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 120VAC |
| EKC1-0908-220 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 220VAC |
| EKC1-0908-230 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 230VAC |
| EKC1-0908-240 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 240VAC |
| EKC1-0908-380 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 380VAC |
| EKC1-0908-415 | Contactor 4KW AC3 9A 4P 2NO+2NC Coil 415VAC |
| EKC1-1204-24 | Contactor 5.5KW AC3 12A 4P 4NO Coil 24VAC |
| EKC1-1204-42 | Contactor 5.5KW AC3 12A 4P 4NO Coil 42VAC |
| EKC1-1204-48 | Contactor 5.5KW AC3 12A 4P 4NO Coil 48VAC |
| EKC1-1204-110 | Contactor 5.5KW AC3 12A 4P 4NO Coil 110VAC |
| EKC1-1204-120 | Contactor 5.5KW AC3 12A 4P 4NO Coil 120VAC |
| EKC1-1204-220 | Contactor 5.5KW AC3 12A 4P 4NO Coil 220VAC |
| EKC1-1204-230 | Contactor 5.5KW AC3 12A 4P 4NO Coil 230VAC |
| EKC1-1204-240 | Contactor 5.5KW AC3 12A 4P 4NO Coil 240VAC |
| EKC1-1204-380 | Contactor 5.5KW AC3 12A 4P 4NO Coil 380VAC |
| EKC1-1204-415 | Contactor 5.5KW AC3 12A 4P 4NO Coil 415VAC |
| EKC1-1208-24 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 24VAC |
| EKC1-1208-42 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 42VAC |
| EKC1-1208-48 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 48VAC |
| EKC1-1208-110 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 110VAC |
| EKC1-1208-120 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 120VAC |
| EKC1-1208-220 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 220VAC |
| EKC1-1208-230 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 230VAC |
| EKC1-1208-240 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 240VAC |
| EKC1-1208-380 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 380VAC |
| EKC1-1208-415 | Contactor 5.5KW AC3 12A 4P 2NO+2NC Coil 415VAC |
| EKC1-2504-24 | Contactor 11KW AC3 25A 4P 4NO Coil 24VAC |
| EKC1-2504-42 | Contactor 11KW AC3 25A 4P 4NO Coil 42VAC |
| EKC1-2504-48 | Contactor 11KW AC3 25A 4P 4NO Coil 48VAC |
| EKC1-2504-110 | Contactor 11KW AC3 25A 4P 4NO Coil 110VAC |
| EKC1-2504-120 | Contactor 11KW AC3 25A 4P 4NO Coil 120VAC |
| EKC1-2504-220 | Contactor 11KW AC3 25A 4P 4NO Coil 220VAC |
| EKC1-2504-230 | Contactor 11KW AC3 25A 4P 4NO Coil 230VAC |
| EKC1-2504-240 | Contactor 11KW AC3 25A 4P 4NO Coil 240VAC |
| EKC1-2504-380 | Contactor 11KW AC3 25A 4P 4NO Coil 380VAC |
| EKC1-2504-415 | Contactor 11KW AC3 25A 4P 4NO Coil 415VAC |
| EKC1-2508-24 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 24VAC |
| EKC1-2508-42 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 42VAC |
| EKC1-2508-48 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 48VAC |
| EKC1-2508-110 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 110VAC |
| EKC1-2508-120 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 120VAC |
| EKC1-2508-220 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 220VAC |
| EKC1-2508-230 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 230VAC |
| EKC1-2508-240 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 240VAC |
| EKC1-2508-380 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 380VAC |
| EKC1-2508-415 | Contactor 11KW AC3 25A 4P 2NO+2NC Coil 415VAC |
| EKC1-4004-24 | Contactor 18.5KW AC3 40A 4P 4NO Coil 24VAC |
| EKC1-4004-42 | Contactor 18.5KW AC3 40A 4P 4NO Coil 42VAC |
| EKC1-4004-48 | Contactor 18.5KW AC3 40A 4P 4NO Coil 48VAC |
| EKC1-4004-110 | Contactor 18.5KW AC3 40A 4P 4NO Coil 110VAC |
| EKC1-4004-120 | Contactor 18.5KW AC3 40A 4P 4NO Coil 120VAC |
| EKC1-4004-220 | Contactor 18.5KW AC3 40A 4P 4NO Coil 220VAC |
| EKC1-4004-230 | Contactor 18.5KW AC3 40A 4P 4NO Coil 230VAC |
| EKC1-4004-240 | Contactor 18.5KW AC3 40A 4P 4NO Coil 240VAC |
| EKC1-4004-380 | Contactor 18.5KW AC3 40A 4P 4NO Coil 380VAC |
| EKC1-4004-415 | Contactor 18.5KW AC3 40A 4P 4NO Coil 415VAC |
| EKC1-4008-24 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 24VAC |
| EKC1-4008-42 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 42VAC |
| EKC1-4008-48 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 48VAC |
| EKC1-4008-110 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 110VAC |
| EKC1-4008-120 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 120VAC |
| EKC1-4008-220 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 220VAC |
| EKC1-4008-230 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 230VAC |
| EKC1-4008-240 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 240VAC |
| EKC1-4008-380 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 380VAC |
| EKC1-4008-415 | Contactor 18.5KW AC3 40A 4P 2NO+2NC Coil 415VAC |
| EKC1-5004-24 | Contactor 22KW AC3 50A 4P 4NO Coil 24VAC |
| EKC1-5004-42 | Contactor 22KW AC3 50A 4P 4NO Coil 42VAC |
| EKC1-5004-48 | Contactor 22KW AC3 50A 4P 4NO Coil 48VAC |
| EKC1-5004-110 | Contactor 22KW AC3 50A 4P 4NO Coil 110VAC |
| EKC1-5004-120 | Contactor 22KW AC3 50A 4P 4NO Coil 120VAC |
| EKC1-5004-220 | Contactor 22KW AC3 50A 4P 4NO Coil 220VAC |
| EKC1-5004-230 | Contactor 22KW AC3 50A 4P 4NO Coil 230VAC |
| EKC1-5004-240 | Contactor 22KW AC3 50A 4P 4NO Coil 240VAC |
| EKC1-5004-380 | Contactor 22KW AC3 50A 4P 4NO Coil 380VAC |
| EKC1-5004-415 | Contactor 22KW AC3 50A 4P 4NO Coil 415VAC |
| EKC1-5008-24 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 24VAC |
| EKC1-5008-42 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 42VAC |
| EKC1-5008-48 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 48VAC |
| EKC1-5008-110 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 110VAC |
| EKC1-5008-120 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 120VAC |
| EKC1-5008-220 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 220VAC |
| EKC1-5008-230 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 230VAC |
| EKC1-5008-240 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 240VAC |
| EKC1-5008-380 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 380VAC |
| EKC1-5008-415 | Contactor 22KW AC3 50A 4P 2NO+2NC Coil 415VAC |
| EKC1-6504-24 | Contactor 30KW AC3 65A 4P 4NO Coil 24VAC |
| EKC1-6504-42 | Contactor 30KW AC3 65A 4P 4NO Coil 42VAC |
| EKC1-6504-48 | Contactor 30KW AC3 65A 4P 4NO Coil 48VAC |
| EKC1-6504-110 | Contactor 30KW AC3 65A 4P 4NO Coil 110VAC |
| EKC1-6504-120 | Contactor 30KW AC3 65A 4P 4NO Coil 120VAC |
| EKC1-6504-220 | Contactor 30KW AC3 65A 4P 4NO Coil 220VAC |
| EKC1-6504-230 | Contactor 30KW AC3 65A 4P 4NO Coil 230VAC |
| EKC1-6504-240 | Contactor 30KW AC3 65A 4P 4NO Coil 240VAC |
| EKC1-6504-380 | Contactor 30KW AC3 65A 4P 4NO Coil 380VAC |
| EKC1-6504-415 | Contactor 30KW AC3 65A 4P 4NO Coil 415VAC |
| EKC1-6508-24 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 24VAC |
| EKC1-6508-42 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 42VAC |
| EKC1-6508-48 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 48VAC |
| EKC1-6508-110 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 110VAC |
| EKC1-6508-120 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 120VAC |
| EKC1-6508-220 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 220VAC |
| EKC1-6508-230 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 230VAC |
| EKC1-6508-240 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 240VAC |
| EKC1-6508-380 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 380VAC |
| EKC1-6508-415 | Contactor 30KW AC3 65A 4P 2NO+2NC Coil 415VAC |
| EKC1-8004-24 | Contactor 37KW AC3 80A 4P 4NO Coil 24VAC |
| EKC1-8004-42 | Contactor 37KW AC3 80A 4P 4NO Coil 42VAC |
| EKC1-8004-48 | Contactor 37KW AC3 80A 4P 4NO Coil 48VAC |
| EKC1-8004-110 | Contactor 37KW AC3 80A 4P 4NO Coil 110VAC |
| EKC1-8004-120 | Contactor 37KW AC3 80A 4P 4NO Coil 120VAC |
| EKC1-8004-220 | Contactor 37KW AC3 80A 4P 4NO Coil 220VAC |
| EKC1-8004-230 | Contactor 37KW AC3 80A 4P 4NO Coil 230VAC |
| EKC1-8004-240 | Contactor 37KW AC3 80A 4P 4NO Coil 240VAC |
| EKC1-8004-380 | Contactor 37KW AC3 80A 4P 4NO Coil 380VAC |
| EKC1-8004-415 | Contactor 37KW AC3 80A 4P 4NO Coil 415VAC |
| EKC1-8008-24 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 24VAC |
| EKC1-8008-42 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 42VAC |
| EKC1-8008-48 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 48VAC |
| EKC1-8008-110 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 110VAC |
| EKC1-8008-120 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 120VAC |
| EKC1-8008-220 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 220VAC |
| EKC1-8008-230 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 230VAC |
| EKC1-8008-240 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 240VAC |
| EKC1-8008-380 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 380VAC |
| EKC1-8008-415 | Contactor 37KW AC3 80A 4P 2NO+2NC Coil 415VAC |
| EKC1-9504-24 | Contactor 45KW AC3 95A 4P 4NO Coil 24VAC |
| EKC1-9504-42 | Contactor 45KW AC3 95A 4P 4NO Coil 42VAC |
| EKC1-9504-48 | Contactor 45KW AC3 95A 4P 4NO Coil 48VAC |
| EKC1-9504-110 | Contactor 45KW AC3 95A 4P 4NO Coil 110VAC |
| EKC1-9504-120 | Contactor 45KW AC3 95A 4P 4NO Coil 120VAC |
| EKC1-9504-220 | Contactor 45KW AC3 95A 4P 4NO Coil 220VAC |
| EKC1-9504-230 | Contactor 45KW AC3 95A 4P 4NO Coil 230VAC |
| EKC1-9504-240 | Contactor 45KW AC3 95A 4P 4NO Coil 240VAC |
| EKC1-9504-380 | Contactor 45KW AC3 95A 4P 4NO Coil 380VAC |
| EKC1-9504-415 | Contactor 45KW AC3 95A 4P 4NO Coil 415VAC |
| EKC1-9508-24 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 24VAC |
| EKC1-9508-42 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 42VAC |
| EKC1-9508-48 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 48VAC |
| EKC1-9508-110 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 110VAC |
| EKC1-9508-120 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 120VAC |
| EKC1-9508-220 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 220VAC |
| EKC1-9508-230 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 230VAC |
| EKC1-9508-240 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 240VAC |
| EKC1-9508-380 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 380VAC |
| EKC1-9508-415 | Contactor 45KW AC3 95A 4P 2NO+2NC Coil 415VAC |
| DC Coil | |
| EKC1-0910Z-12 | Contactor 4KW AC3 9A 3P+1NO Coil 12VDC |
| EKC1-0910Z-24 | Contactor 4KW AC3 9A 3P+1NO Coil 24VDC |
| EKC1-0910Z-36 | Contactor 4KW AC3 9A 3P+1NO Coil 36VDC |
| EKC1-0910Z-48 | Contactor 4KW AC3 9A 3P+1NO Coil 48VDC |
| EKC1-0910Z-110 | Contactor 4KW AC3 9A 3P+1NO Coil 110VDC |
| EKC1-0910Z-120 | Contactor 4KW AC3 9A 3P+1NO Coil 120VDC |
| EKC1-0910Z-220 | Contactor 4KW AC3 9A 3P+1NO Coil 220VDC |
| EKC1-0901Z-12 | Contactor 4KW AC3 9A 3P+1NC Coil 12VDC |
| EKC1-0901Z-24 | Contactor 4KW AC3 9A 3P+1NC Coil 24VDC |
| EKC1-0901Z-36 | Contactor 4KW AC3 9A 3P+1NC Coil 36VDC |
| EKC1-0901Z-48 | Contactor 4KW AC3 9A 3P+1NC Coil 48VDC |
| EKC1-0901Z-110 | Contactor 4KW AC3 9A 3P+1NC Coil 110VDC |
| EKC1-0901Z-120 | Contactor 4KW AC3 9A 3P+1NC Coil 120VDC |
| EKC1-0901Z-220 | Contactor 4KW AC3 9A 3P+1NC Coil 220VDC |
| EKC1-1210Z-12 | Contactor 5.5KA AC3 12A 3P+1NO Coil 12VDC |
| EKC1-1210Z-24 | Contactor 5.5KA AC3 12A 3P+1NO Coil 24VDC |
| EKC1-1210Z-36 | Contactor 5.5KA AC3 12A 3P+1NO Coil 36VDC |
| EKC1-1210Z-48 | Contactor 5.5KA AC3 12A 3P+1NO Coil 48VDC |
| EKC1-1210Z-110 | Contactor 5.5KA AC3 12A 3P+1NO Coil 110VDC |
| EKC1-1210Z-120 | Contactor 5.5KA AC3 12A 3P+1NO Coil 120VDC |
| EKC1-1210Z-220 | Contactor 5.5KA AC3 12A 3P+1NO Coil 220VDC |
| EKC1-1201Z-12 | Contactor 5.5KA AC3 12A 3P+1NC Coil 12VDC |
| EKC1-1201Z-24 | Contactor 5.5KA AC3 12A 3P+1NC Coil 24VDC |
| EKC1-1201Z-36 | Contactor 5.5KA AC3 12A 3P+1NC Coil 36VDC |
| EKC1-1201Z-48 | Contactor 5.5KA AC3 12A 3P+1NC Coil 48VDC |
| EKC1-1201Z-110 | Contactor 5.5KA AC3 12A 3P+1NC Coil 110VDC |
| EKC1-1201Z-120 | Contactor 5.5KA AC3 12A 3P+1NC Coil 120VDC |
| EKC1-1201Z-220 | Contactor 5.5KA AC3 12A 3P+1NC Coil 220VDC |
| EKC1-1810Z-12 | Contactor 7.5KA AC3 18A 3P+1NO Coil 12VDC |
| EKC1-1810Z-24 | Contactor 7.5KA AC3 18A 3P+1NO Coil 24VDC |
| EKC1-1810Z-36 | Contactor 7.5KA AC3 18A 3P+1NO Coil 36VDC |
| EKC1-1810Z-48 | Contactor 7.5KA AC3 18A 3P+1NO Coil 48VDC |
| EKC1-1810Z-110 | Contactor 7.5KA AC3 18A 3P+1NO Coil 110VDC |
| EKC1-1810Z-120 | Contactor 7.5KA AC3 18A 3P+1NO Coil 120VDC |
| EKC1-1810Z-220 | Contactor 7.5KA AC3 18A 3P+1NO Coil 220VDC |
| EKC1-1801Z-12 | Contactor 7.5KA AC3 18A 3P+1NC Coil 12VDC |
| EKC1-1801Z-24 | Contactor 7.5KA AC3 18A 3P+1NC Coil 24VDC |
| EKC1-1801Z-36 | Contactor 7.5KA AC3 18A 3P+1NC Coil 36VDC |
| EKC1-1801Z-48 | Contactor 7.5KA AC3 18A 3P+1NC Coil 48VDC |
| EKC1-1801Z-110 | Contactor 7.5KA AC3 18A 3P+1NC Coil 110VDC |
| EKC1-1801Z-120 | Contactor 7.5KA AC3 18A 3P+1NC Coil 120VDC |
| EKC1-1801Z-220 | Contactor 7.5KW AC3 18A 3P+1NC Coil 220VDC |
| EKC1-2510Z-12 | Contactor 11KA AC3 25A 3P+1NO Coil 12VDC |
| EKC1-2510Z-24 | Contactor 11KA AC3 25A 3P+1NO Coil 24VDC |
| EKC1-2510Z-36 | Contactor 11KA AC3 25A 3P+1NO Coil 36VDC |
| EKC1-2510Z-48 | Contactor 11KA AC3 25A 3P+1NO Coil 48VDC |
| EKC1-2510Z-110 | Contactor 11KA AC3 25A 3P+1NO Coil 110VDC |
| EKC1-2510Z-120 | Contactor 11KA AC3 25A 3P+1NO Coil 120VDC |
| EKC1-2510Z-220 | Contactor 11KA AC3 25A 3P+1NO Coil 220VDC |
| EKC1-2501Z-12 | Contactor 11KA AC3 25A 3P+1NC Coil 12VDC |
| EKC1-2501Z-24 | Contactor 11KA AC3 25A 3P+1NC Coil 24VDC |
| EKC1-2501Z-36 | Contactor 11KA AC3 25A 3P+1NC Coil 36VDC |
| EKC1-2501Z-48 | Contactor 11KA AC3 25A 3P+1NC Coil 48VDC |
| EKC1-2501Z-110 | Contactor 11KA AC3 25A 3P+1NC Coil 110VDC |
| EKC1-2501Z-120 | Contactor 11KA AC3 25A 3P+1NC Coil 120VDC |
| EKC1-2501Z-220 | Contactor 11KA AC3 25A 3P+1NC Coil 220VDC |
| EKC1-3210Z-12 | Contactor 15KA AC3 32A 3P+1NO Coil 12VDC |
| EKC1-3210Z-24 | Contactor 15KA AC3 32A 3P+1NO Coil 24VDC |
| EKC1-3210Z-36 | Contactor 15KA AC3 32A 3P+1NO Coil 36VDC |
| EKC1-3210Z-48 | Contactor 15KA AC3 32A 3P+1NO Coil 48VDC |
| EKC1-3210Z-110 | Contactor 15KA AC3 32A 3P+1NO Coil 110VDC |
| EKC1-3210Z-120 | Contactor 15KA AC3 32A 3P+1NO Coil 120VDC |
| EKC1-3210Z-220 | Contactor 15KA AC3 32A 3P+1NO Coil 220VDC |
| EKC1-3201Z-12 | Contactor 15KA AC3 32A 3P+1NC Coil 12VDC |
| EKC1-3201Z-24 | Contactor 15KA AC3 32A 3P+1NC Coil 24VDC |
| EKC1-3201Z-36 | Contactor 15KA AC3 32A 3P+1NC Coil 36VDC |
| EKC1-3201Z-48 | Contactor 15KA AC3 32A 3P+1NC Coil 48VDC |
| EKC1-3201Z-110 | Contactor 15KA AC3 32A 3P+1NC Coil 110VDC |
| EKC1-3201Z-120 | Contactor 15KA AC3 32A 3P+1NC Coil 120VDC |
| EKC1-3201Z-220 | Contactor 15KA AC3 32A 3P+1NC Coil 220VDC |
| EKC1-4011Z-12 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 12VDC |
| EKC1-4011Z-24 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 24VDC |
| EKC1-4011Z-36 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 36VDC |
| EKC1-4011Z-48 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 48VDC |
| EKC1-4011Z-110 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 110VDC |
| EKC1-4011Z-120 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 120VDC |
| EKC1-4011Z-220 | Contactor 18.5KW AC3 50A 3P+1NO+1NC Coil 220VDC |
| EKC1-5011Z-12 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 12VDC |
| EKC1-5011Z-24 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 24VDC |
| EKC1-5011Z-36 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 36VDC |
| EKC1-5011Z-48 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 48VDC |
| EKC1-5011Z-110 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 110VDC |
| EKC1-5011Z-120 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 120VDC |
| EKC1-5011Z-220 | Contactor 22KW AC3 50A 3P+1NO+1NC Coil 220VDC |
| EKC1-6511Z-12 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 12VDC |
| EKC1-6511Z-24 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 24VDC |
| EKC1-6511Z-36 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 36VDC |
| EKC1-6511Z-48 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 48VDC |
| EKC1-6511Z-110 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 110VDC |
| EKC1-6511Z-120 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 120VDC |
| EKC1-6511Z-220 | Contactor 30KW AC3 65A 3P+1NO+1NC Coil 220VDC |
| EKC1-8011Z-12 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 12VDC |
| EKC1-8011Z-24 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 24VDC |
| EKC1-8011Z-36 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 36VDC |
| EKC1-8011Z-48 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 48VDC |
| EKC1-8011Z-110 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 110VDC |
| EKC1-8011Z-120 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 120VDC |
| EKC1-8011Z-220 | Contactor 37KW AC3 80A 3P+1NO+1NC Coil 220VDC |
| EKC1-9511Z-12 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 12VDC |
| EKC1-9511Z-24 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 24VDC |
| EKC1-9511Z-36 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 36VDC |
| EKC1-9511Z-48 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 48VDC |
| EKC1-9511Z-110 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 110VDC |
| EKC1-9511Z-120 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 120VDC |
| EKC1-9511Z-220 | Contactor 45KW AC3 95A 3P+1NO+1NC Coil 220VDC |
